DH43H -5MP- B PTZ CAMERA

5X Zoom 1920P PTZ IP Camera Black

5x auto focus zoom lens provide detailed view

Patent designed

HD Pan/Tilt/Zoom wireless dome IP camera

H.264/H.265 video compression

Day/Night surveillance, IR LEDs On/Off auto switch

With 22pcs IR-LEDs, night vision range up to 30m

Motion detection alarm via E-mail, upload alarm snapshot to FTP

Compatible with free PC central management software(Device Clients)

Compatible with free iOS and Android APP

Supports IEEE 802.11b/g/n wireless connection

Supports WEP, WPA and WPA2 encryption

P2P feature for easy remote access

Model:			DH43H
Image Sensor	Image Sensor		Color CMOS WXGA(megapixel) HD sensor
Chipset Solution		T31N+SC200AI
Display Resolution		1920p(19202560), 800600
Mini. Illumination		0.01Lux
Lens	Lens Type		Glass Lens
Focal Length		2.7-13.5mm 5X Auto Focus Zoom
Aperture		F1.4
Angle of view		92° ~ 28°
Video	Image Compression		H.265, H.264 High Profile ,H.264 Main Profile 及H.264 Baseline
Image Frame Rate		1080P 20fps(50HZ), 20fps(60HZ)
Stream		Double Stream
Image Adjustment		The brightness, contrast, saturation, chroma are adjustable
Flip Mirror Images		Reversal and mirror
Night visibility		22pcs IR-LEDs, night vision range up to 30m
IR-CUT		Dual IR-CUT filter (Original)
Infrared mode		Automatic or manual
Light Frequency		50Hz, 60Hz

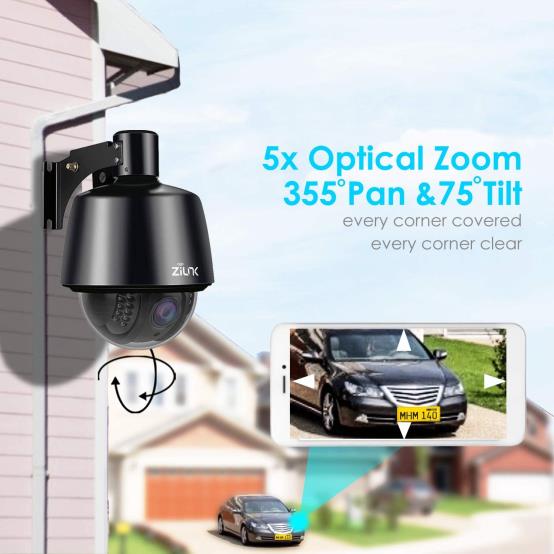

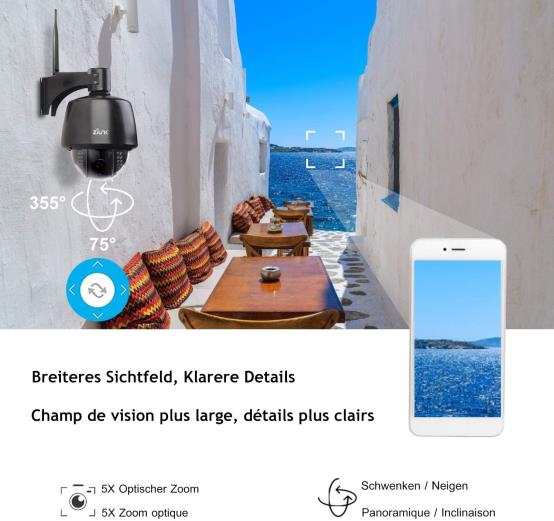

PTZ	Pan/Tilt Angle		Horizontal:355° & Vertical: 75°
3D Preset		8 presets, include Horizontal & Vertical Position and Focal length
Preset Cruise		1-8 preset positions cruise
Border Scan		Set any position as left or right border, scan between the borders
Horizontal Scan		355° horizontal scan
Guard position		Support, default is preset position 1
Alarm preset		Support
ONVIF	ONVIF		Support ONVIF 2.4
Network	Ethernet		10/100Mbps RJ-45 port
Protocol		TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP
Wireless Standard		IEEE 802.11b/g/n
Data Rate		IEEE802.11b: 11Mbps(Max.) IEEE802.11g: 54Mbps(Max.) IEEE802.11n: 150Mbps(Max.)
Wireless Security		WEP, WPA, WPA2
System	By PC		Windows XP/7/8/10, Vista, Mac OS
By Phone		Android, iOS
Browser		Microsoft IE7 and above version or compatible browser; Mozilla Firefox; Google Chrome; Apple Safari.
Device Clients		Up to 64-channel,centralized monitor, remote record and playback
Physical	Dimension		162(L)Φ131(W)191(H) mm
Net/Gross Weight		1200g/1600g
Color Box		235(L) x 165(W) x 215(H) mm
Power	Power Supply		DC 12V/1A
Power Consumption		8 ~12 Watts (Max.)
Other Feature	Protection level		IP65
Shell		Metal shell
User Accounts		administrator
UID Technology		UID scan technology applied, easy to operate, and highly confidential.
Reset		Reset button is available
Alarm		Motion detection alarm
Environment	Operate Temp.		0° ~ 50°C (32°F ~ 131°F)
Operating Humidity		10% ~ 95% non-condensing
Storage Temp.		0° ~ 50°C (32°F ~ 131°F)
Storage Humidity		10% ~ 95% non-condensing
Certification	CE, FCC, RoHS
Warranty	Limited 1-year warranty
Operating temperature	0° ~ 50°C (32°F ~ 131°F)
